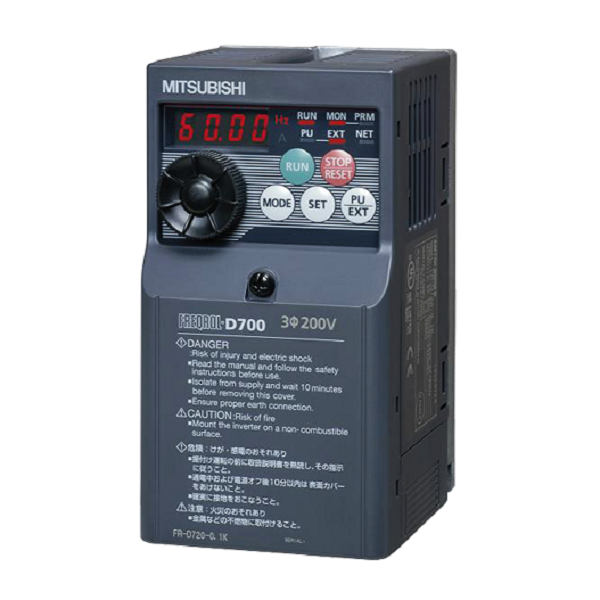

Small AC Drive Inverter Mitsubishi FR-D720-0.75K Induction Motor

Name: Small AC Drive Inverter Mitsubishi FRD720075K Induction Motor
Brand: Mitsubishi
Price: 99.00 USD

Buy cheap Small AC Drive Inverter Mitsubishi FR-D720-0.75K Induction Motor product

Brand Name : Mitsubishi

Model Number : FR-D720-0.75K

Certification : CE

Place of Origin : China/Japan

MOQ : 1/pc

Price : $99.00 - $699.00/Pieces

Supply Ability : 10pc/per week

Packaging Details : Carton packaging

Condition : 100% Original

Warranty : 1 Year

Shipping term : TNT DHL FEDEX EMS UPS

Payment term : T.T WESTUNION

Delivery time : Within 3 Working Days

Quality : 100%Brand

Package : Orginal package

Supply Voltage : Standard Voltage

Operating Temperature : Normal Temperature

Port : Shenzhen & Guanzhou /Selectable

Payment Terms : T/T, western union

Contact Now

New And Original Mitsubishi FR-D720-0.75K AC Drive Inverter

FA-Inverter: Inverter

Power Loss SLD (W)	N/A
Power Loss ND (W)	50
Power Loss HD (W)	N/A
Power Loss LD (W)	N/A
Control Method (2)	N/A
Built-In Network (2)	N/A
Series	FR-D700 SERIES
Safe Torque Off (STO)	YES
Rated Output Current ND (A)	4,2
Phases	3
Integrated Digital Inputs	5
Display Type	4 DIGITS LED
Integrated EMC Filter	NO
Integrated DC Choke	NO
RS-485	1
Integrated Analogue Outputs	1
Type	FR-D700 COMPACT INVERTER
Rated Output Current SLD (A)	N/A
Program Memory	N/A
PLC Function	NO
Rated Motor Capacity ND (kW)	0,75
Control Method	V/F CONTROL
Integrated Analogue Inputs	2
Rated Output Current LD (A)	N/A
Program Memory Unit	N/A
USB	NO
Brake Chopper ED (%)	30
Current Type	AC
Protection Class	IP20
Motor Type	INDUCTION MOTOR
Display	BUILT-IN
Rated Motor Capacity SLD (kW)	N/A
Max. Permissible Voltage (V)	264
Digital Outputs (Transistor)	1
Rated Output Current HD (A)	N/A
Expandable	NO
Minimum Rated Voltage (V)	200
Min. Permissible Voltage (V)	170
Digital Outputs (Relay)	1
Rated Motor Capacity LD (kW)	N/A
Type of Terminal Block	SPRING CLAMP
Maximum Rated Voltage (V)	240
Built-In Network	MODBUS-RTU
Rated Motor Capacity HD (kW)	N/A
Regenerative (4Q)	NO
Leakage Current (mA)	1
Power Loss (W)	N/A
Standby Power Consumption (W)	5,5-10,5
Ethernet Port	NO

Product Dimensions & Weight

Depth (mm)	162,5
Weight (kg)	1
Width (mm)	68
Height (mm)	128

Conformity

CE	COMPLIANT
EAC	COMPLIANT
UL/cUL	COMPLIANT
UKCA	COMPLIANT

Product Description

Small-size inverter with a highest class standard of performance on a compact body.
[Features]
· This is the smallest in the Mitsubishi Electric inverter series.
· Can be installed side by side in contact with each other to save space.
* The inverter shall be used at an ambient temperature of 40°C or below.
· The cooling fan is designed to last long for up to 10 years.
* The design life is an estimated value, and is not guaranteed.
[Applications]
· Ideal for applications with transportation, packaging, textile, printing equipment, etc.
